| | | FEATURES |

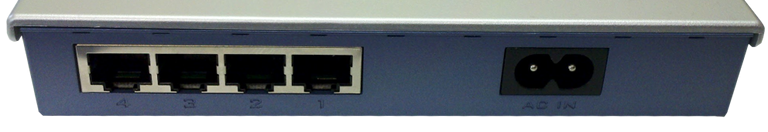

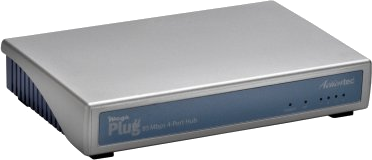

- Built-in 4-port Ethernet switch
-
Integrates a 4-port 10Mbps Ethernet switch with a
HomePlug 1.0 w/Turbo adapter in a single device.
Ideal when multiple Ethernet devices need to be plugged in,
e.g., when using RS485-to-Ethernet converters.
- No new wires
-
This unit communicates with
the eGauge main
unit using a building's existing power lines.
- Easy installation
-
Plug 6' power-cord (included) into wall-outlet, plug
5' Ethernet cable (included) into adapter and an available
Ethernet port on your router, modem, or Ethernet hub/switch.
The remaining 3 Ethernet ports are available for use by
other devices.
- Versatility
-
A single adapter can communicate with up to 16 eGauge or
other HomePlug devices.
- Compatibility
-
The adapter can communicate not just with eGauge, but any
other HomePlug 1.0-compatible device. For example, buy a second
adapter to extend your LAN to other rooms.
- Security
-
All communication is encrypted with 56-bit DES.
Custom-encryption password can be selected via
eGauge main unit's web-based configuration or
via the Action configuration utility.
|
| | | REQUIREMENTS |
- One available Ethernet port
- One available power wall-outlet near Ethernet port
(This adapter must not be plugged into a
power-strip with built-in surge-suppressor.)
|
|
|
| | | SPECIFICATIONS |
| Warranty: |
Limited 1 year warranty |
| Standards: |
IEEE 802.3
HomePlug Turbo Powerline Spec 1.0.1
10base-T
|
| Data rate: |
Up to 85 Mbps over standard home
power lines |
| Operating range: |
Up to 300 meters (980 ft) in wall power lines
Capable of passing through circuit breakers
|
| Security: |
56-bit DES Data Encryption
|
| Frequency band: |
4.3 MHz − 20.9 MHz
|
| Input voltage: |
100 − 240V |
| Line frequency: |
50 or 60Hz |
| Consumption: |
3W typical |
| Operating temp: |
0°C − 40°C (-32°F −
104°F) |
| Humidity: |
10% − 85% (non-condensing) |
| Location: |
indoor use only |
| Size: |
157×98×30mm3
(6.2″×3.9″×1.2″)
|
| Weight: |
150g (5.3oz) |
| Safety: |
UL
|
| FCC: |
Part 15 Class B
|
|
|
Enter Online Store to purchase direct.
For wholesale and distributor pricing, please call:
877.EGAUGE1
(877.342.8431), extension 1.
|
|
