| | | FEATURES |

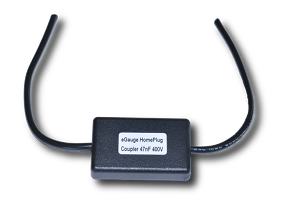

- Isolated capacitor that allows high-frequency HomePlug
signal to bypass transformers or other obstacles filtering
out HomePlug signal.
- Typically used to pass HomePlug signal from high-voltage
(e.g., 277/480Vac) to low-voltage (e.g., 120/208Vac) side.
- Manual.
|
|
|
Enter Online Store to purchase direct.
877.EGAUGE1
(877.342.8431), extension 1.
|
| | | SPECIFICATIONS |
| Capacitance: |
47nF |
| Capacitor rating: |
430Vac |
| Lead size: |
AWG 12 |
| Lead rating: |
600Vac |
| Lead length: |
6″ |
| Size: |
53×33×12mm3
(2″×1.3″×0.5″)
|
| Weight: |
100g (3.6oz) |
|
|
|
